Tajima TMFX Card Identification

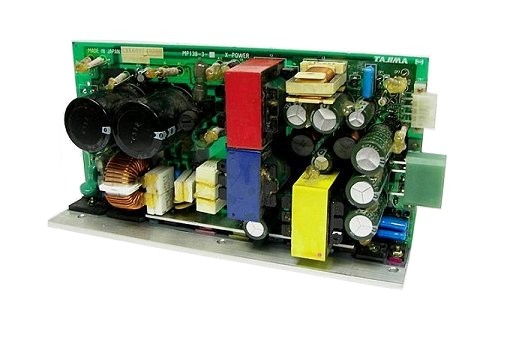

Tajima part number for the main TMFX power supply card, marked X-POWER card; Sticker varies: CX5601, CX5601000000, CX560101, CX5601010000, CX560102, CX5601020000, CX560103, CX5601030000, CX560104, CX5601040000, etc. Also marked MP138, or MP138-1, MP138-1-A, etc. This card will have two very large black capacitors on it, along with three colored transformers, and two thick cables soldered directly to the board, and usually a green colored large socket.
Tajima TMFX Card Location

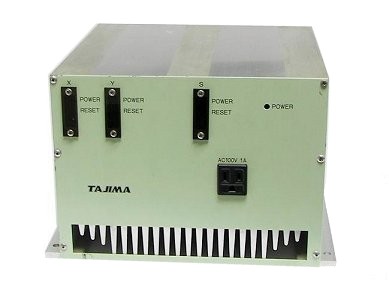

These four cards are inside the large power box underneath a TMFX, or inside the earliest version TMEX (the TMEX1 only).
Tajima TMFX Card problems
ERRORS include the 211 and 311 errors, jerky movement on either X or Y, loss of registration on X or Y, the main shaft not spinning, general loss of power on the machine, head cards not responding, all solenoids not firing.
If you have any of these symptoms, please contact us; we do recommend sending all four boards still intact inside of its heat-sink shell; damage to one card can cause damage to other cards. Also check the lights underneath your machine on the power board; they will be orange briefly on powerup, and then green once they get a good signal from the control panel.
Be aware that there are ON-OFF switches on the front of the X-card, Y-card, and S-card, and a board turned off will stay orange at all times.
